Ring magnet_Shape specifications_Product display_Yogo Technology, Chinas professional magnet manufacturer

Ring magnet

Keywords: Permanent magnets, ring magnets, horn magnets, neodymium iron boron magnets, neodymium magnets

Material: N35, N42, N45, N48, N50, N52, 45M, 50M, 38H, 40H, 42H, 48H, 50H, 38SH, 42SH, 48SH, 38UH, 42UH, 38EH, 40EH, 35AH, 38AH,etc.

Application Area: Packaging, stationery, consumer electronics, household appliances, industrial permanent magnet motors, linear motors, variable frequency compressors, permanent magnet wind turbines, rail transit traction motors, etc

Description

Why do you prioritize us?

1) Over ten years of manufacturing and marketing experience, understanding the different technical requirements of different customers.

2) We are strategic partners of multiple Fortune 500 companies, with guaranteed product quality and after-sales service.

3) Fully cooperate with customer samples and small batch trial order requirements.

4) A competitive pricing system and fast delivery time, as we are a true scale manufacturer.

5) Professional advice or consulting services, especially when the project is in the design stage.

Products:

Product Name	Ring magnets, NdFeB magnets, Nd magnets, rare earth ring magnets
Material Quality	NdFeB, neodymium magnets, rare earth magnets, magnets
Grade and temperature	Performance Level	Maximum Operating Temperature
	N35-N54	80°C (176°F)°C
	35M-52M	100°C (212°F)°C
	35H-50H	120°C (248°F)°C
	33SH-48SH	150°C (302°F)°C
	28UH-45UH	180°C (356°F)°C
	28EH-42EH	200°C (392°F)°C
	28AH-40AH	230°C (446°F)°C
Shape	Rings, but discs, tiles, squares, cylinders and various special-shaped products can be made
Cladding Material	Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc.
Magnetization Direction	Thickness direction magnetization, axial magnetization, radial magnetization, multi-stage magnetization and radiation magnetization, etc. Special customized magnetization methods are also available.
Application Area	Servo motors, brushless motors, linear motors, electric tools, automotive parts (EPS, oil pump motors, starting motors, ignition coils, etc.), electric vehicle motors, robot drive motors, variable frequency compressors, rail transit traction motors, consumer electronics, permanent magnet wind turbines, energy-saving elevators, speaker equipment, magnetic switches, optical drive heads, nuclear magnetic resonance, magnetic separators, sensors, etc
Authentication Certificate	ISO9001，ROHS, REACH
Package	Standard sea or air freight packaging, such as cardboard boxes, wooden boxes, pallets, etc
Delivery date	The sample usually takes 7 days, and the batch usually takes 15-20 days
Transport	Express delivery (TNT, DHL, FedEx, UPS), air and sea freight, freight collect or prepaid can be operated

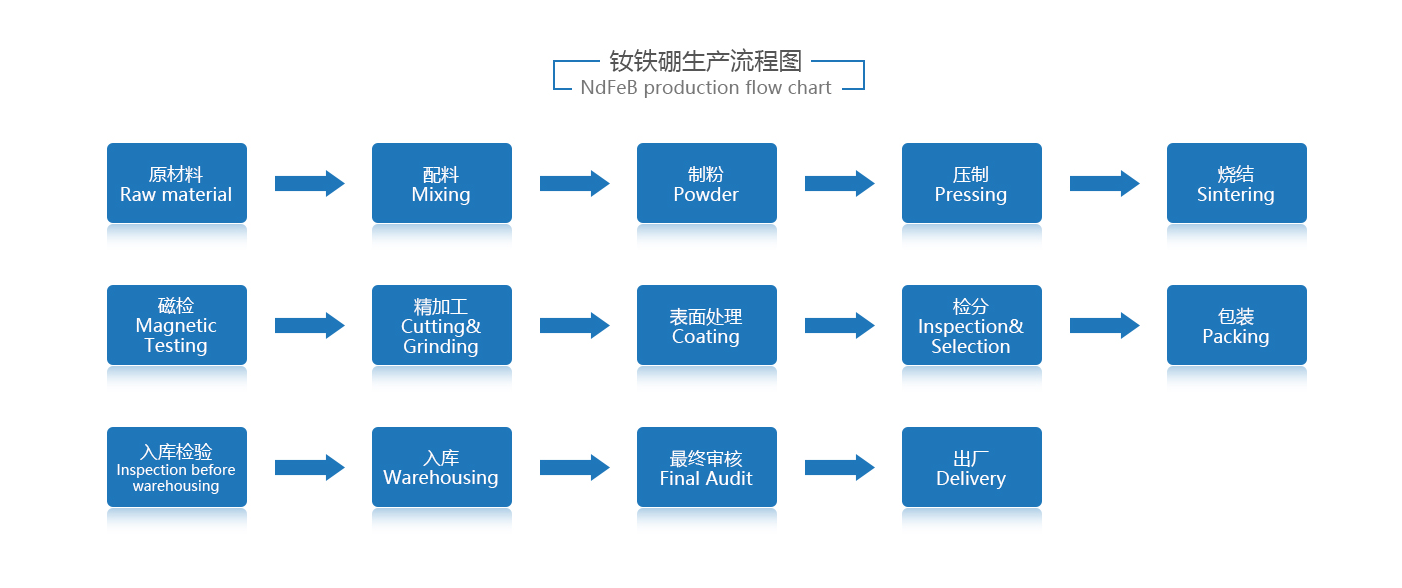

1. Production flow of Permanent NdFeB Magnet:

生产工艺

2. Magnetic Property Distribution Chart of Permanent NdFeB Magnet:

3.Available coating of Permanent NdFeB Magnet:

Ni, NiCuNi, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Sn etc.

4.Magnetized Direction of NdFeB magnet:

Thickness, Axially, Diametrical, Multipoles and Radial magnetization are available, Customized magnetization is welcome.

5. Applications of Permanent NdFeB Magnet:

NdFeB Magnet are widely used in Servo motor, Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Traction Motor, wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc.
