Halbach Array of magnets

The Halbach array is a special arrangement of permanent magnets that enhances the magnetic field on one side while weakening it on the other. This principle was first pioneered by James (Jim) M. Winey at Magnepan in 1970. Thanks to the emergence of the Halbach array, it is now widely applied in particle accelerators for focusing and accelerating electron beams

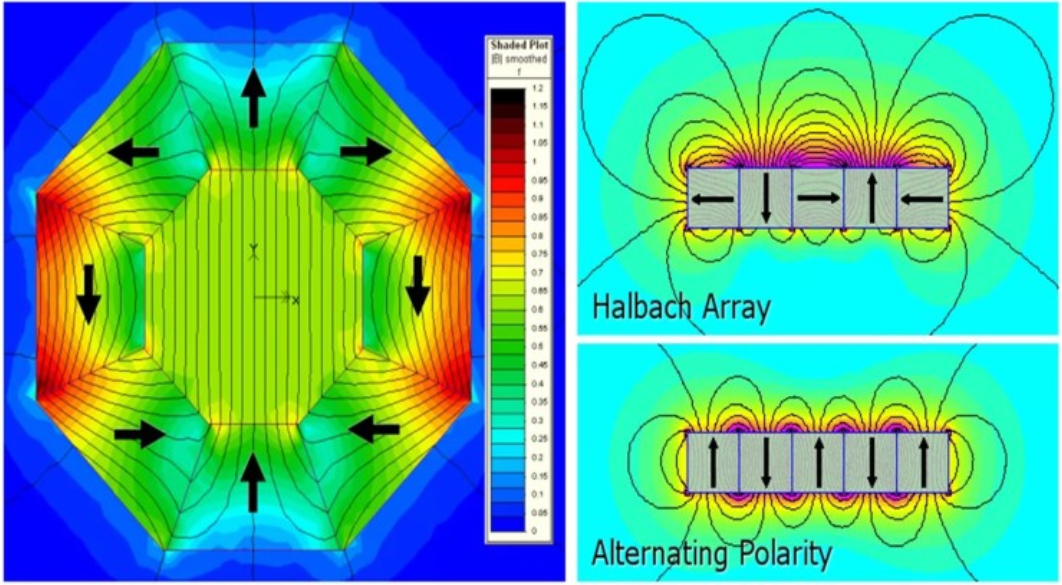

The array is composed entirely of rare-earth permanent magnets, and by arranging magnets with different magnetization directions according to a specific pattern, magnetic field lines converge on one side of the magnet while weakening on the other, thereby achieving a relatively ideal one-sided magnetic field

Applications of Halbach Array Components

Due to its unique magnetic field characteristics, Halbach components, which enhance their performance, have found wide applications across various industries.

1. Medical Imaging: Circular Halbach magnets are also commonly used in medical imaging devices, such as Magnetic Resonance Imaging (MRI) equipment. These magnets can generate a stable magnetic field for the positioning and excitation of atomic nuclei within the object being examined, thereby acquiring high-resolution imaging information.
2. Particle Accelerators: Circular Halbach magnets can also be applied in particle accelerators to guide and control the motion path of high-energy particles. These magnets can generate powerful magnetic fields to alter the trajectories and velocities of particles, facilitating particle acceleration and focusing.
3. Ring Motors: Circular Halbach magnets are also used in motor designs to produce driving torque. By changing the direction and magnitude of the current, these magnets generate varying magnetic fields to drive the rotation of the motor.
4. Laboratory Research: Circular Halbach magnets are frequently employed in physics laboratories to create stable and uniform magnetic fields for research in areas such as magnetism and materials science.

When selecting Halbach magnets, several factors need to be considered:

1. Magnetic Field Requirements: Determine the required magnetic field strength based on the specific application needs.
2. Dimensional Requirements: Account for the spatial constraints in which the magnet will be installed, specifying the appropriate outer diameter, inner diameter, and height to ensure proper fit.
3. Temperature Requirements: Establish the maximum operating temperature limits for the magnet, enabling the selection of suitable materials and cooling methods.
4. Corrosion Resistance: Consider the magnet's resistance to corrosion in particular environments and select appropriate materials and coatings to protect the magnet.
5. Stability Requirements: For applications that demand a stable magnetic field, choose magnets with higher magnetic field stability and lower field drift rates.

It's important to note that these factors are considerations when selecting a circular Halbach magnet, and the specific choice should be based on an analysis of the actual application requirements.
